Rally Plastic delivers high-quality, precision ABS molding solutions. From prototyping to high-volume production, we bring your ABS plastic parts to life.
Rally Plastic delivers high-precision ABS injection molded parts to global clients. We go beyond basic mold building to provide complete, end-to-end custom plastic manufacturing. The state-of-the-art facility in China is fully equipped with over 60 advanced injection molding machines (ranging from 100T to 1000T), capable of meeting your custom manufacturing needs.
Delivering custom ABS enclosures and protective housings with tight tolerances for electronics & medical use.
Flexible on-demand production for design validation and testing without heavy upfront investments.
Efficient mass production with optimized cycle times, ensuring high yields for global supply chains.
Fusing rigid ABS with soft TPU/TPE or threaded metal inserts for robust multi-material parts.
Rally Plastic's custom ABS molding solutions are applied across various industries to produce high-quality, application-specific parts.

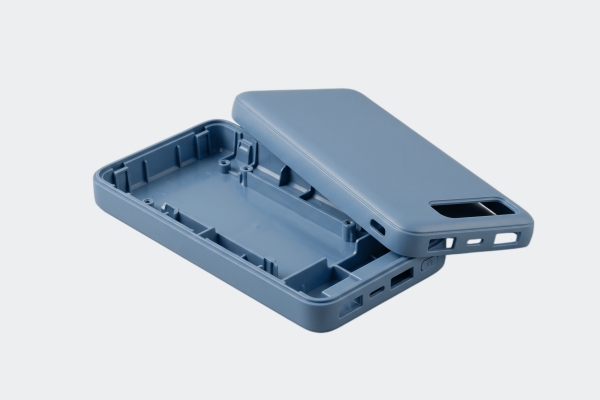

Sample Products: Smart home hubs, router housings, remote control shells, and power bank casings.

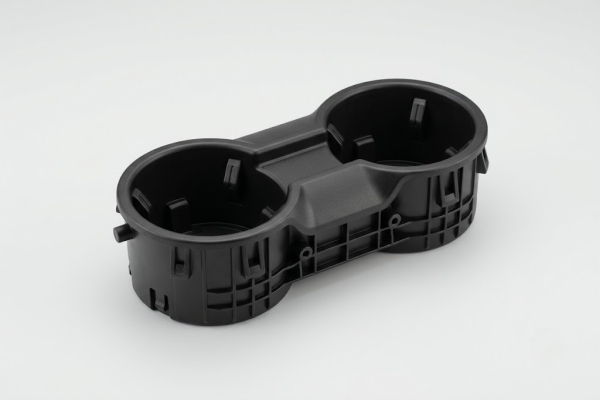

Sample Products: Dashboard instrument panels, center console trims, air conditioning vent grilles, and glove box doors.
Sample Products: Handheld diagnostic tool cases, blood pressure monitor shells, and hospital bed control panels.
Sample Products: Coffee maker exteriors, vacuum cleaner bodies, air purifier covers, and blender bases.

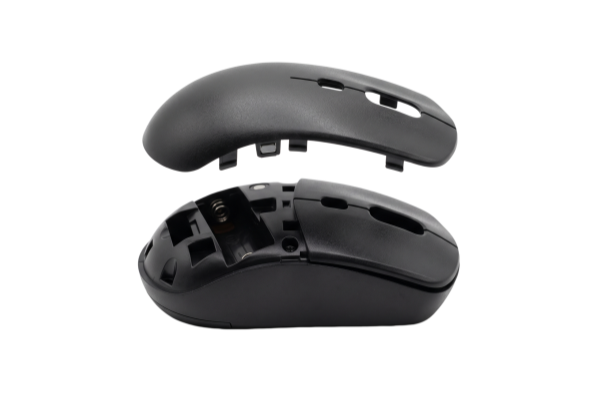

Sample Products: Printer housings, barcode scanner grips, POS terminal covers, and mechanical keyboard cases.
Sample Products: Protective sporting helmets, luggage shells, and daily hardware tool handles.
Rally Plastic offers a full range of high-quality certified steel options—from rapid prototyping tooling to million-shot mass production molds—tailored specifically to your ABS project requirements.
| Mold Steel Grade | Expected Tool Life (Shots) | Application |
|---|---|---|
| P20 / 1.2311 | 100,000 – 300,000 | Standard commercial ABS parts & medium-volume runs |
| 718H / 1.2738 | 300,000 – 500,000 | High-quality ABS electronics housings & smooth finishes |
| NAK80 | 500,000+ | High-gloss ABS parts, optical applications, & cosmetic covers |
| S136 / S136H | 1,000,000+ | Flame-retardant (FR) ABS, medical grade parts, & cleanroom molding |
| H13 / 1.2344 | 1,000,000+ | Ultra-high volume mass production & multi-cavity molds |
Excellent balance of impact resistance, rigidity, and cost-effectiveness.
Consumer electronics enclosures, everyday household appliances, toys, and standard daily hardware.
Formulated with additives to self-extinguish. Meets strict UL94 V-0 standards.
Power strips, computer housings, battery enclosures, and electrical components.
Can withstand higher continuous operating temperatures without deformation.
Automotive interior components, heat-generating household appliances, and industrial enclosures.
Blended with 10%–30% glass fibers for superior structural rigidity and tensile strength.
Industrial equipment parts, heavy-duty structural frames, and components requiring high load-bearing capabilities.
Specifically optimized for chemical adhesion during the metal plating process.
Chrome-plated automotive trim, premium bathroom fixtures, and decorative cosmetic packaging.
Standardized Quality Management
Eco-Friendly & Safe Polymers
Verified China Factory
Your IP & CAD Drawings are Safe
Certified Engineering Plastics
Upload your 2D/3D files for a fast, competitive quote. Turn your designs into reality.
To ensure optimal moldability, structural integrity, and a flawless surface finish, we recommend optimizing your CAD models according to these standard Design for Manufacturing (DFM) parameters.
Contact Our Engineer| Design & Process Item | Recommended Range |
|---|---|
| Recommended Wall Thickness | 1.2 mm – 3.5 mm |
| Minimum Draft Angle | 1° – 2° (for untextured surfaces) |
| Standard Tolerances | ± 0.05 mm – 0.10 mm |
| Mold Temperature Range | 40°C – 80°C |
| Resin Drying | 80–90°C for 2–4 hrs |
ABS is highly receptive to various secondary operations, Rally Plastic offers versatile cosmetic and functional finishes.
Find answers about tooling ownership, production capabilities, materials, lead times, and our injection molding process.
ABS plastic injection molding is a highly efficient manufacturing process where Acrylonitrile Butadiene Styrene pellets are melted and injected under high pressure into a precise steel cavity. Once cooled, the thermoplastic solidifies into a durable, impact-resistant part. At Rally Plastic, our engineers leverage this process to produce complex geometries with excellent surface finishes and dimensional stability.
| ABS Property | Typical Value |
|---|---|
| Tensile Strength | 40–50 MPa |
| Flexural Strength | 65–75 MPa |
| Impact Strength (Izod) | 200–300 J/m |
| Heat Deflection Temp. | 95–105°C |
| Material Shrinkage | 0.4%–0.7% |
| Water Absorption | 0.2–0.4% |
| Density | 1.04 g/cm³ |
Yes, Polycarbonate (PC) and ABS can be successfully dual injection molded (two-shot molding) because they share excellent chemical compatibility and similar processing temperatures. When molded together, they form a robust mechanical and chemical bond without requiring separate adhesives. Rally Plastic frequently utilizes this technique to combine the extreme impact resistance and transparency of PC with the superior machinability and cost-efficiency of ABS, creating highly durable, multi-functional enclosures for premium electronic and automotive components.
Choosing between these common thermoplastics depends entirely on your specific application. ABS offers an excellent balance of cost, impact resistance, and superior surface finishes (like electroplating). PC (Polycarbonate) provides higher heat resistance, transparency, and extreme impact strength, but at a higher material cost. PP (Polypropylene) excels in chemical resistance and flexibility—perfect for living hinges—but is difficult to paint or glue. If you have any questions, please contact Rally Plastic's engineers for your own recommendation.
Technically, it is generally not recommended to use the same injection mold for both ABS and nylon (PA) without tooling modifications. Nylon has a significantly higher shrink rate (often 1.0%–1.5%) compared to the 0.4%–0.7% typical for ABS. If you inject nylon into a tool cut specifically for ABS, the resulting parts will likely be undersized and fail dimensional tolerances. Additionally, nylon requires much higher melt and mold temperatures, which might exceed the thermal design limits of the existing ABS mold.
Sink marks in ABS molding usually occur due to uneven cooling and thermal contraction in thicker sections of the plastic part. To prevent this, engineers must adhere to strict Design for Manufacturing (DFM) guidelines. The most critical rule is maintaining a uniform wall thickness. If reinforcing ribs are necessary, their base thickness should not exceed 60% of the adjacent nominal wall. Furthermore, optimizing holding pressure and extending cooling times within the m
Send us your 2D/3D files or project requirements. Our engineering team will deliver a detailed quotation with free DFM suggestions within 24 hours.
